CASE STUDY

Guidance & Steering Platform

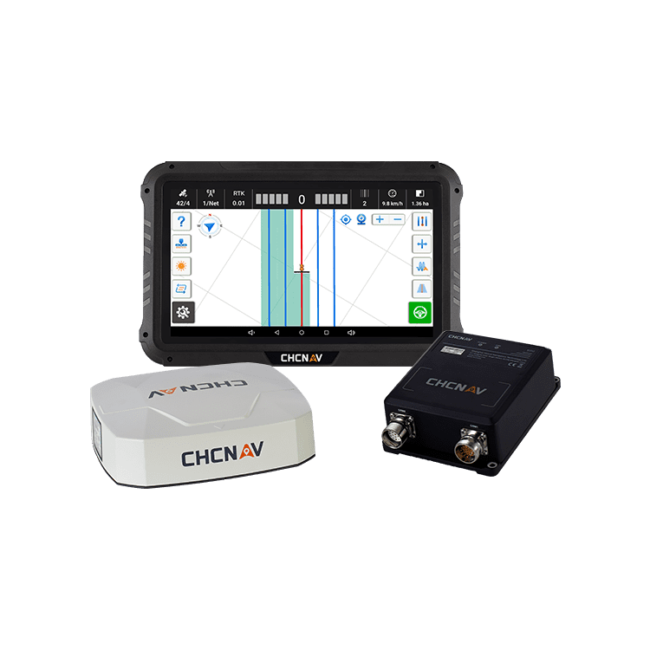

NX510 STEER READY
The NX510 Steer Ready is a cost- effective auto-steering system designed for steer-ready vehicles. Featuring GNSS and RTK technologies, various guidance patterns, ISOBUS compatibility, U-turn capabilities, and more, the system enhances the efficiency of diverse farming operations.
HIGHLY INTEGRATED COMPONENTS
The NX510 Steer Ready system consolidates essential components, such as GNSS, IMU, 4G, and radio, into 3 core modules: a smart receiver, a control display, and an electronic control unit that supports PWM and CAN communication. This comprehensive design solution speeds up installation and enables quick system transfer between farm vehicles, optimizing farmers’ time and costs.
2.5 CM PASS-TO-PASS ACCURACY
Using multiple correction sources and full constellation support - including GPS, GLONASS, Galileo, Beidou and QZSS - the NX510 Steer Ready system provides autonomous, SBAS and RTK capabilities. Its advanced terrain compensation technology ensures consistent, high-level accuracy even in tough operating conditions and at high and low speeds.
ADVANCED FUNCTIONALITY
With ISOBUS VT/UT compatibility, the NX510 Steer Ready integrates multiple functions into a single control display, reducing the need for additional tablet in the cab. The system also supports .SHP file inputs and provides NMEA and 5V pulse outputs, ensuring smooth integration with a wide range of third-party devices.
RUGGED DESIGN AND RELIABLE PERFORMANCE
The NX510 Steer Ready system is designed to withstand the rigors of agricultural use. It features a rugged design with dust-and water-resistant components rated IP65 and higher. With the ability to endure extreme temperatures, vibrations, and shocks, this system offers a dependable solution for even the most challenging environments.
VERSATILE GUIDANCE PATTERNS AND WIDE WORKING SPEED RANGE
The NX510 Steer Ready system comes up with a variety of steering patterns, including AB line, A+ line, pivot, curve, 90° line, all-path line, and headland line. Its advanced control algorithm and responsive hardware allow seamless operation over a wide speed range from 0.1 to 25 km/ h. This versatility makes it suitable for a diverse array of agricultural tasks, including tillage, harrowing, plowing, ridging, seeding, spraying, spreading, and harvesting.
USER-FRIENDLY SOFTWARE INTERFACE
Operating on a 10.1" Android display, the multilingual AgNav software ensures user-friendly navigation and accessibility. Engineered for rapid onboarding, new users can master the system in just a few minutes. Its remote assistance functionality facilitates connections between the user and the software support team. AgNav streamlines work, empowering farmers to perform field tasks quickly and easily.
aa17e821-ed48-42f6-8018-295dff9c9e78

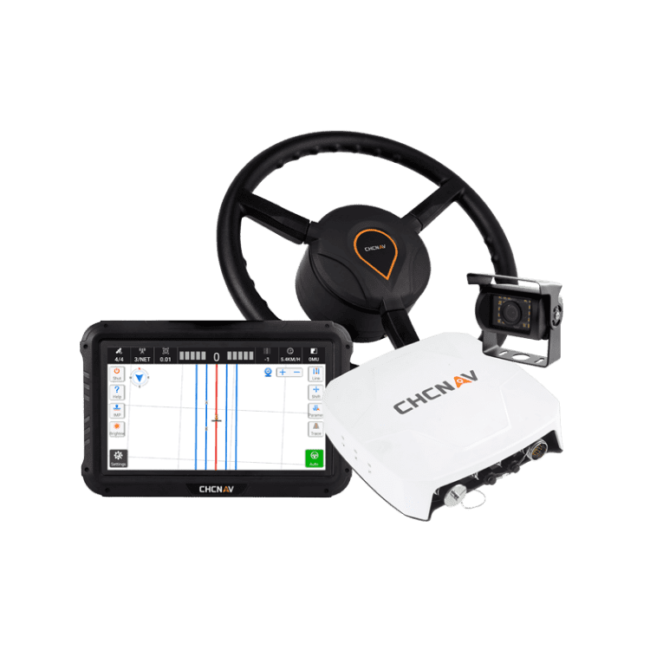

NX510 PRO AUTO-STEER
GNSS RTK + RTX™ Steering System
MULTI-CONSTELLATION TRACKING + L-BAND
The NX510 PRO's advanced guidance controller is powered with multiple correction sources and five satellite constellations: GPS, GLONASS, Galileo, Beidou, and QZSS. Its integrated 4G modem connects seamlessly to any industry-standard DGPS and RTK corrections; its L-band capability enables the system to operate reliably with RTX® satellite corrections. In addition, the terrain compensation technology maintains 2.5 cm pass-to-pass accuracy, even in challenging environments and terrain.
FAST, EASY-TO-USE AND RUGGED DISPLAY
AgNav multilingual software, operating on a 10.1-inch industrial display, supports multiple guidelines patterns, including AB line, A+ line, circle line, irregular curve and headland turn, to handle all common farming operations. The intuitive AgNav software enhances the user experience in every way to complete field operations with high speed and accuracy.
RUGGED DESIGN AND PROVEN RELIABILITY
The NX510 PRO's industrial design incorporates dust and waterproof components (IP65 rating or higher), perfectly suited for use in the agricultural environment. In addition, the durable, high-torque electric steering wheel ensures fast and reliable line acquisition.
FULLY INTEGRATED STEERING CONTROLLER
The NX510 PRO is an automated steering system that can be fully installed in a short time on most farming vehicles, significantly eliminating costly downtime. The new auto steer features high connectivity (multiple CAN ports, serial ports, Wi-Fi, Bluetooth 4.1, and a 4G modem) as well as ISOBUS compatibility with all major equipment brands, addressing the most demanding farming applications and enhancing operation in the field.
VISUAL SURVEY EXCELLENCE
The i89 enhances GNSS surveying by using vision-based technology to capture accurate measurements in areas with obstructed signals or limited access. Its advanced cameras provide survey-grade 3D coordinates from video, boosting efficiency and reliability. With a dynamic panoramic capture mode and 85% overlap, efficiency improves by 60%. The integration of high-precision IMU data into the video photogrammetry algorithm further enhances point measurement accuracy.
82312d8c-25e7-4e88-b1a3-c81c48e29873

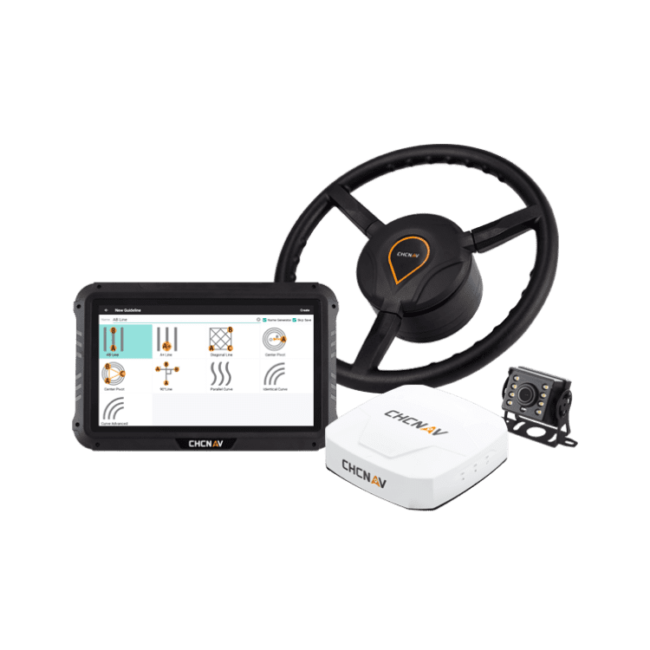

NX510 SE AUTO-STEER
GNSS RTK Steering System
2.5 CM PASS-TO-PASS ACCURACY
The NX510 SE is an advanced guidance controller powered by multiple correction sources and five satellite constellations: GPS, GLONASS, Galileo, Beidou and QZSS. Its built-in 4G and UHF modem seamlessly connects to all industry standard DGPS and RTK corrections to achieve centimeter accuracy steering. In addition, terrain compensation technology maintains high accuracy, even in challenging environments and terrain.
FAST, EASY-TO-USE AND RUGGED DISPLAY
AgNav multilingual software, operating on a 10.1-inch industrial display, supports multiple guidelines patterns, including AB line, A+ line, circle line, irregular curve and headland turn, to handle all common farming operations. The intuitive AgNav software enhances the user experience in every way to complete field operations with high speed and accuracy.
RUGGED DESIGN AND PROVEN RELIABILITY
The NX510 SE’s industrial design incorporates dust and waterproof components (IP65 rating or higher), perfectly suited for use in the agricultural environment. In addition, the durable, high-torque electric steering wheel ensures fast and reliable entry on lines.
ENHANCED CONNECTIVITY STEERING CONTROLLER
The NX510 SE is an automated steering system that can be fully installed in a short time on most farming vehicles, significantly eliminating costly downtime. The auto-steering system features enhanced built-in connectivity, including multiple CAN ports, serial ports, Wi-Fi, Bluetooth 4.1, a 4G modem, and even its on-board UHF radio modem. ISOBUS compatibility with all major brands of equipment provides an optimal response to demanding agricultural applications and improves field operations.
